DC Gear Motors Range

T3 DC Series Gear Motor Units

The heavyweight of our range, the FBT3 DC gear motor is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Available with SC9 AC, Synchronous AC, DC and Brushless DC versions to suit a wide range of applications. Output shaft length and diameter to suit individual customer requirements.

  • Available with a 5 or 7 series FRS-DC motor
  • Output Torque: Up to 35Nm depending on speed and motor size
  • Speed range: 3.5 - 50rpm

The T3 DC Gear Motor is suitable for use in: switchgear, ventilation equipment, valve actuators, safety lighting, HVAC, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

t3 dc series gear motor units
  • Line Drawings

    t3 dc series gear motor units dimensions

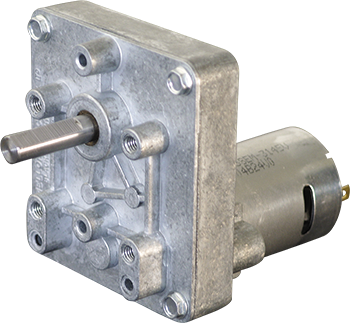

T4 DC Series Gear Motor Units

Used extensively in chemical pumping and dosing applications, the CBT4 DC gear motor has a compact design which makes it ideal for mounting inside small enclosures.

  • Available with an SC9 AC motor in 5 stator stack sizes
  • Available with a 5 series DC motor (see FRSDC section for details)
  • Output Torque: Up to 4Nm depending on speed and motor size
  • Speed Range: 30 to 325rpm

The T4 DC Gear Motor is suitable for use in: peristaltic pumps & diagphragm pumps.

t4 dc series gear motor units
  • Line Drawings

    t4 dc series gear motor units dimensions

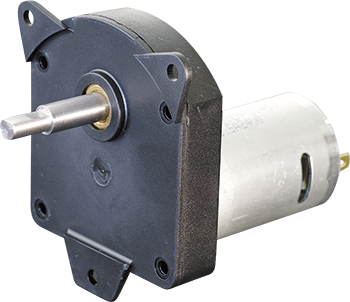

T5 DC Series Gear Motor Units

This versatile plastic bodied motor gearbox is slim-line and lightweight. Designed with the product engineer in mind, this unit is ideal for applications where space is at a premium but quality cannot be compromised.

  • Available with a 3 or 5 series DC motor (see FRS DC section for details)
  • Output Torque: Up to 2Nm depending on speed and motor size
  • Speed Range: 50 to 325rpm

The T5 DC Gear Motor is suitable for use in: packaging equipment, banking equipment, phone card machines, turntables, peristaltic pumps & diagphragm pumps.

t5 dc series gear motor units
  • Line Drawings

    t3 dc series gear motor units dimensions

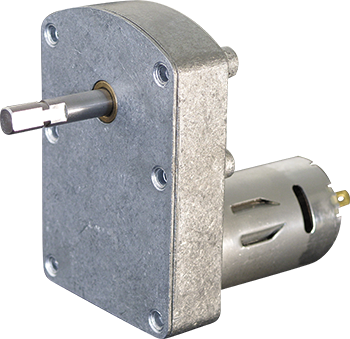

T6 DC Series Gear Motor Units

Our most versatile offering, the UBT6 DC gear motor is available with four different lid options to suit a wide range of mountings. Used extensively in pumps, vending machines and animated displays, this unit is the perfect solution for any application that requires a quiet, robust and reliable gearbox. Available with SC9 AC, Synchronous AC, DC and Brushless DC versions. Output shaft length and diameter to suit individual customer requirements.

  • Available with a 5 or 7 series DC motor (see FRSDC section for details)
  • Output Torque: Up to 8Nm depending on speed and motor size
  • Speed range: 4 - 425rpm

The T6 DC Gear Motor is suitable for use in: security systems, safety lighting, phone card machines, money and coin handling, packaging equipment, ventilation equipment, vending machines, peristaltic pumps, diagphragm pumps, amusement machines, valve actuators, point of sale displays, instrumentation, HVAC, turntables, scientific equipment & medical equipment.

t6 dc series gear motor units
  • Line Drawings Series 5

    t6 dc series gear motor units dimensions series 5
  • Line Drawings Series 7

    t6 dc series gear motor units dimensions series 7

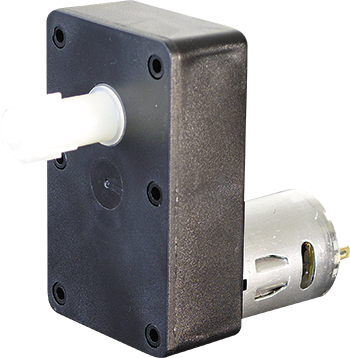

T10 DC Series Gear Motor Units

Featuring moulded plastic gears and housing, the MBT10 series DC gear motor provides a low cost alternative to standard metal motor gearboxes. The system has been designed on a modular basis to provide maximum versatility - two motors for different torques, choice of gears for three ratios and three different hex plug-in output shafts which can be front or rear mounted.

  • 380 (24VDC) or 555 (12VDC or 24VDC) series DC motor (see FRS DC section for details)
  • Output Torque: 0.28Nm - 1.9Nm depending on speed and motor size
  • Catalogue Speed Range: 80, 140, or 160rpm
  • Actual Off Load Speed Range: 65 - 190rpm

The T10 DC Gear Motor is suitable for use in: vending machines.

t10 dc series gear motor units
  • Line Drawings

    t10 dc series gear motor units dimensions

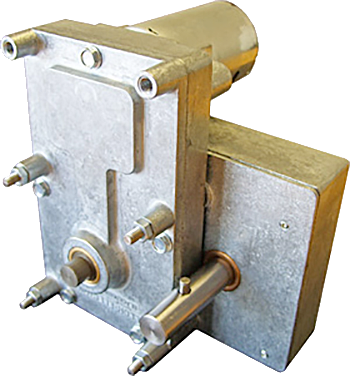

T11 DC Series High Torque Gear Motor Units

The FB T3 can be fitted with an additional external gearbox. This produces a unit that can give extremely slow rpm and very high torque.

  • Output Torque: Up to 50Nm depending on speed and motor size
  • Speed Range: 0.35 - 22rpm

T11 AC Gear Motor is suitable for use in: composting (waterless) toilets & agricultural equipment.

  • Line Drawings

    t11 dc series gear motor units dimensions
t11 dc series high torque gear motor units
